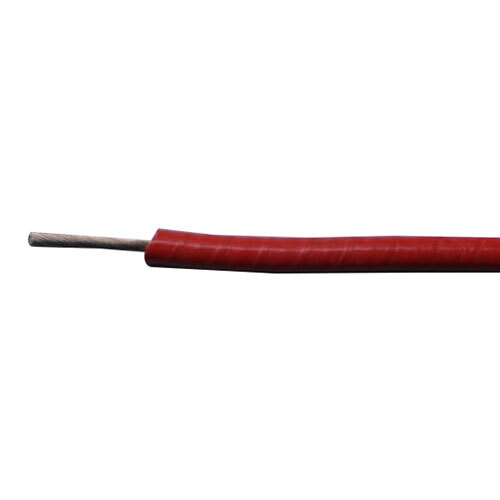

Send InquiryPTFE Wire
Price 5.0 INR/ Unit
MOQ : 10 Units
PTFE Wire Specification
- Temperature
- -60C to +260C
- No Of Core
- Single core
- Cable Length
- Custom or roll length
- Conductor Type
- Single core, solid or stranded
- Connector Type
- Bare wire ends (connectors can be attached as needed)
- Product Type
- PTFE Wire
- Material
- Polytetrafluoroethylene (PTFE)
- Function
- Electrical insulation and signal transmission
- Usage
- Internal wiring for electrical and electronic equipment
- Voltage Surge
- Up to 1200 V
- Frequency (MHz)
- Up to 300 MHz
- Rated Voltage
- 250 V to 1000 V
- Rated Current
- Depends on wire size (commonly 1A to 25A)
- Cable Capacity
- Depends on conductor gauge
- Insulation Material
- PTFE
- Conductor Material
- Tinned copper
- Length
- Custom (commonly available in 100m, 200m, 500m rolls)
- Size
- Standard sizes from 0.25 sq. mm to 6 sq. mm
- Color
- Red (various colors available)
- Diameter
- As per wire gauge, typically 0.8 mm to 5 mm
- Application
- Aerospace, instrumentation, electronics, automotive, industrial
- Flame Retardant
- Yes, self-extinguishing
- Insulation Thickness
- 0.3 mm to 1 mm (depending on specification)
- Surface Finish
- Smooth, non-stick PTFE jacket
- Chemical Resistance
- Excellent resistance to acids, bases, and solvents
- Abrasion Resistance
- High
- Halogen Free
- Yes
- RoHS Compliance
- Yes
- Dielectric Strength
- Greater than 20 kV/mm
- Flexibility
- Excellent for tight routing
- Moisture Resistance
- Excellent
PTFE Wire About
Teflon wire is an electrical wire insulated with PTFE (Polytetrafluoroethylene), commonly known as Teflon. It is widely used in applications where high temperature resistance, chemical stability, and electrical reliability are required.
Key Features:
Excellent heat resistance (typically up to 200260C)
High chemical and moisture resistance
Very good electrical insulation properties
Low friction surface, easy to install
Resistant to aging, oil, and solvents
Long service life even in harsh environments
Applications:
Aerospace and aviation wiring
Industrial machinery and control panels
Automotive and railway applications
High-frequency and signal cables
Medical and laboratory equipment
Available in:
Single core / multi-core, different sizes and colors as per requirement.
Exceptional Electrical Protection
This PTFE wire is engineered for outstanding electrical insulation, ensuring safe and reliable signal transmission across a wide operating voltage (250V-1000V) and frequency (up to 300 MHz) range. Its superior dielectric strength protects equipment from voltage surges while maintaining operational integrity in critical environments. The flame-retardant, self-extinguishing properties reduce fire hazards, making it ideal for sensitive or safety-critical applications.
Engineered for Harsh Environments
With remarkable resistance to chemicals, moisture, and abrasion, this PTFE wire is exceptionally suited for use in challenging conditions. The non-stick PTFE insulation not only shields against corrosive substances like acids, bases, and solvents, but also maintains flexibility and performance in extreme temperatures-from -60C up to +260C. Its robust design makes it reliable for aerospace, industrial, and automotive wiring.
Flexible Solutions, Customizable Options
Available in single core, solid or stranded tinned copper conductors, these wires are produced in standard sizes and a wide array of colors to fit specific application needs. Lengths can be customized or supplied in bulk rolls for various installation requirements. The easy-to-strip, halogen-free PTFE jacket streamlines processing, while RoHS compliance underscores its safety and environmental commitment.
FAQ's of PTFE Wire:
Q: How does the flame retardant PTFE wire improve safety in electrical installations?
A: PTFE wire with self-extinguishing flame retardant features greatly reduces the risk of fire propagation, safeguarding circuits and equipment. Its non-halogenated construction prevents the release of toxic gases during combustion, making it a reliable choice for environments where safety is paramount.Q: What environments and applications are best suited for this PTFE wire?
A: This wire excels in demanding sectors such as aerospace, electronics, automotive, instrumentation, and industrial equipment, especially where exposure to high temperatures, chemicals, moisture, or abrasion is likely. Its excellent insulation properties ensure performance stability even under tough operating conditions.Q: When should you consider using PTFE-insulated wire instead of conventional types?
A: PTFE-insulated wire is ideal when your application requires high dielectric strength, extended flexibility for tight spaces, exceptional resistance to chemicals and moisture, or exposure to extreme temperatures. It is particularly advantageous in high-frequency or sensitive electronic signal environments.Q: Where can I source PTFE wires with custom sizes and lengths in India?
A: Distributors, manufacturers, suppliers, and traders across India offer PTFE wires in standard and custom sizes. They can typically supply rolls of 100m, 200m, or 500m and accommodate specific length or conductor gauge requirements as needed for your project.Q: What is the process for terminating or connecting this PTFE wire?
A: The wire features bare tinned copper ends that accept various connectors or can be soldered directly. Its smooth PTFE insulation is easy to strip, facilitating efficient processing during manufacturing or installation.Q: How does PTFE insulation benefit long-term cable durability?
A: PTFE insulation provides long-lasting protection by resisting moisture ingress, abrasion, and chemical attacks, which significantly extends the lifespan of the wire, especially in harsh industrial, outdoor, or aerospace environments.Q: Can these wires support higher surge voltages or current requirements?
A: Yes, the wires are rated to withstand voltage surges up to 1200V and can handle different current capacities-typically from 1A up to 25A, depending on the conductor size. This makes them suitable for a wide array of electrical and electronic applications.
